POWDER METALLURGY STEEL:
|
POWDER METALLURGY STEEL ORIGIN MAKES:
GRADES:
FORMS: ROUND Dia:
FLATS: (W) 10mm – 250mm to (H) 20mm – 100mm x Length (meters) SQUARES: 10 mm to 200mm |
| PM 23 –also known as ASP2023 is a chromium- molybdenum-tungsten alloyed vanadium steel which is a economical high powder grade metallurgical cold work steel, Suitable for blanking & forming of thinner work materials where a abrasive type of wear is encountered. It is also known as Powder HSS M2 |
|
Grades |
Average Chemical Composition % |
||||||||||
|
Aisi No. |
Work No. |
|
C. |
Si. |
Mn. |
Cr. |
Mo. |
V. |
W. |
Co. |
Oths. |
|
S790 |
1.3344 |
ASP 2023 |
1.25 |
0.7 |
0.5 |
3.9 |
4.75 |
2.75 |
6.0 |
1.0 |
Nb 0.5 |
|
Applications: Milling cutters, broach needles cutting & punching, tools dies, working rolls for cluster rolling stand. |
|||||||||||

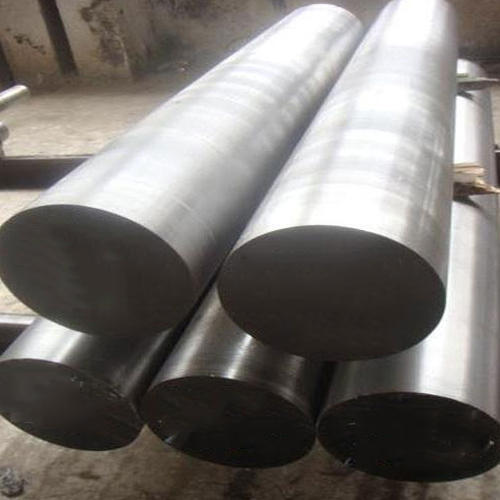

PM4 - also known as ASP4 is a high Vanadium-chromium- molybdenum-tungsten alloyed steel which is a high powder grade metallurgical cold work steel, Suitable where adhesive wear & chipping are the dominant problems occur such as SS, Mild steel, copper, aluminum or thicker work material
|
Grades |
Average Chemical Composition % |
||||||||||
|
Aisi No. |
Work No. |
|
C. |
Si. |
Mn. |
Cr. |
Mo. |
V. |
W. |
Co. |
Oths. |
|
S690 |
1.3351 |
ASP 4 |
1.33 |
|
|
4.3 |
4.9 |
4.1 |
5.9 |
|
|
|
Applications: High speed steel produced by the powder metallurgy method for heavy duty machining tools e.g. for machining of nonferrous metals alloys, such as Ti-base & Ai-alloys. Tools exposed to high compressive stresses, e.g. in fine blanking tools for high-strength materials. |
|||||||||||
PM 30 - also known as ASP2030 is a very high performance Powder metallurgical material having a optimal high cobalt (8%) - vanadium-chromium- molybdenum-tungsten alloyed steel, Suitable for machining of nickel-base and titanium alloys, for heavy and interrupted cuts, such as gear hobs, shapers, milling cutters, twist drills, taps and broaching tools
|
Grades |
Average Chemical Composition % |
||||||||||
|
Aisi No. |
Work No. |
|
C. |
Si. |
Mn. |
Cr. |
Mo. |
V. |
W. |
Co. |
Oths. |
|
S590 |
1.3207 |
ASP 2030 |
1.25 |
0.7 |
0.5 |
3.9 |
4.75 |
3.0 |
6.0 |
8.25 |
Nb 0.50 |
|
Applications: End mills, hobs, shaper cutters, cold forming tools, stamping & punching tools, cutting tools, working rolls for cluster rolling stand. |
|||||||||||
PM 52 - also known as ASP2052 is a very high performance Powder metallurgical material having a optimal high cobalt (8%)– high vanadium- high Tungsten(10%) -chromium- molybdenum alloyed steel, Suitable for machining of nickel-base and titanium alloys, for heavy and interrupted cuts, such as gear hobs, shapers, milling cutters, twist drills, taps and broaching tools.
|
Grades |
Average Chemical Composition % |
||||||||||
|
Aisi No. |
Work No. |
|
C. |
Si. |
Mn. |
Cr. |
Mo. |
V. |
W. |
Co. |
Oths. |
|
S390 |
|
ASP 2052 |
1.6 |
|
|
4.8 |
2.0 |
5.0 |
10.5 |
8.0 |
|
|
Applications: High speed steel produced by the powder metallurgy method for heavy duty machining tools e.g. tools for nonferrous metals such as Ni-base & Ti-alloys. Tools used under extreme compressive stresses, e.g. precision blanking tools for high-strength materials. |
|||||||||||
PM 60 – also known as ASP2060 is the highest performance PM material among all the categories. With high cobalt - vanadium-chromium- molybdenum-tungsten alloyed steel. It is machinable & is available in few sizes only. Suitable for fast, high wear & chipping machinability, works with high graded steel aluminum, carbon contained alloys etc. Turning and milling tools for roughing and finishing work, wood working tools, highly stressed cold work tools, tool bits.
Introduction of PM STEEL
With new technologies & innovations coming our way, high categorized High speed steel with Powder used technology has been introduced as Powder Metallurgy (P.M.).
With high demands from around the world, Powder made steel has started replacing earlier made HSS. It has become a wide popular choice for various diverse applications for tooling in mechanical as well as CNC. It is perfect for an ample variety of users that grind, not except operations with alloys of the high temperature and exotics.
With life of the tools as almost equal to twice, PM steel has given the best performance in comparison to even carbide, leave the earlier used HSS. Due to high chemical composition of Cobalt, Vanadium, Tungsten, Nickel the steel grains stick to its properties stronger with offering us the best steel to be used for high performance tools. High speed steel produced by the powder metallurgy method for heavy duty machining tools e.g. for machining of nonferrous metals alloys, such as Ti-base & Ai-alloys. Tools exposed to high compressive stresses, e.g. in fine blanking tools for high-strength materials.
|
Micro structure of Powder Metallurgy HSS bar material |
Micro Structure of Conventional High Speed Steel bar material |
|
|
|
|
Soft annealed, sintered in vacuum to full density, water atomized prealloyed powder (T42), Carbides in white, ferrous in grey |
Hardened, cast and wrought high speed steel. Dark steel matrix background with Carbides shown in white |
|
|
|
|
Compacted and hardened, sintered to full density in vacuum, annealed & water atomized T 15 powder. Carbides uniformly distributed in the metal. Carbides shown in white with dark steel background. |
Structure of Conventional Forged and Rolled HSS suffers from Carbide banding. |
APPLICATIONS – POWDER HSS
|
Heavy duty milling cutters, broaches, reamers, cutting tools, shaper cutters rotary shave cutters for machining hard materials, socket head & hole punching dies for producing nuts & tap drills. Die blocks, broaching tools, cold extrusion rams, tools subject to extensive mechanical stresses. Heavy roughing work, machining high tensile steels, difficult to machine cast steel, grey cast iron, chill castings NF metals & non-metal material. Turning, planning & shaping tool, rough milling cutters. End mills, hobs, shaper cutters, cold forming tools, stamping & punching tools, cutting tools, working rolls for cluster rolling stand. Highly stressed tools for machining high-strength steels, cast steels & difficult machinable materials at high cutting feed and speed. |
